The electric panel is marked Trilliant and it's all grey plastic. Is it alright?

Friday, October 19, 2018

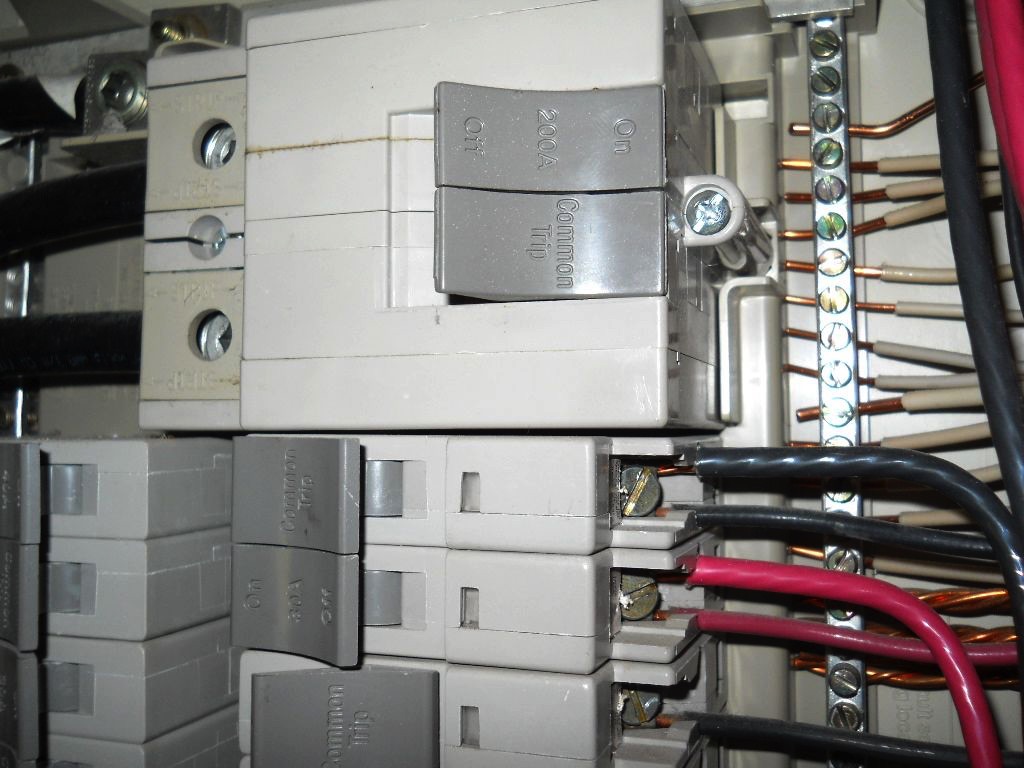

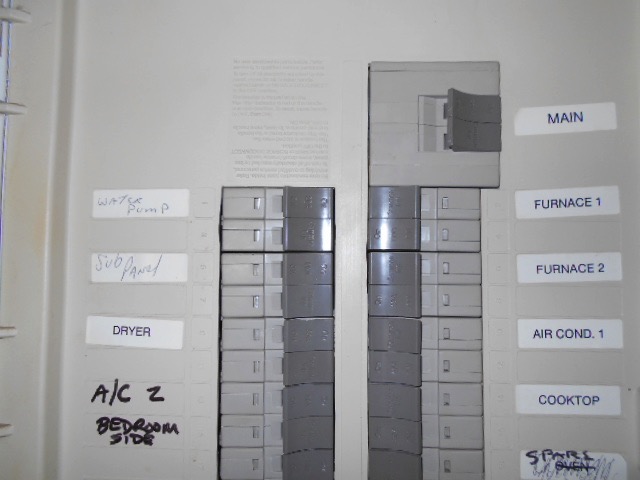

Yes, the panel is fine. Trilliant was a trendy-looking new electric panel design that Square D, one of the largest producers of panels and breakers, introduced in the early 1990s. The equipment looks like what Apple Computer might create if they went into the electrical equipment business.

   Most European service panels are plastic and it is probably the way all panels will be in years to come, but they were not well accepted in the American marketplace back then, and the line was discontinued after a few years.

   We know of only one safety issue with the Trilliant panels: the surge protectors designed for installation in the panels were recalled in September, 1995. Otherwise, the single other problem we encounter is at the dead front screws. They are also plastic, and are removed by rotating the heads 90” and then pulling; which is different than most dead front screws that have threading and unscrew counterclockwise in a normal fashion. The dead front of an older Trilliant panel can be a struggle to remove unless the screw is positioned just right. Plus, they break easily as they get older.

   Trilliant’s only other downside is that, like any discontinued product line, replacement breakers and other panel components are hard to find, and expensive when you can find them.

• • • • • • • • • • • • • • • • • • • • • • • • • •
