What is an air conditioning heat recovery system?

Saturday, August 4, 2018

An air conditioning or heat pump system cools your house during the warm months of the year by absorbing the heat from the interior and transferring it outside. If you put your hand over the top of a condenser (outside unit) while it is operating, you will feel the hot air being blown upward as heat is dissipated from the condenser coils that encircle the outside of the unit.

   A heat recovery system connects between the your water heater and air conditioning or heat pump condenser, transferring some of the heat into the water heater tank that would ordinarily be exhausted into the atmosphere. It is essentially a heat interface between the “hot” pressure line of the air conditioner and a loop of water pipe connected to the water heater, and can provide savings of up to 50% on your hot water energy cost in areas like Florida that have a long air conditioning season.

  “You get free hot water every time you use your air conditioner or heat pump,” according to one manufacturer, Trevor-Martin Corporation. “That saves you energy and money every month. Plus, your air conditioner or heat pump cools more efficiently every time your heat recovery unit runs.”

   The unit itself is a metal box that is located next to either the water heater (inside) or the air conditioning condenser (outside). The box will usually state that it’s a thermal recovery unit, but sometimes the markings will be faded away or missing—especially if it is outside next to the condenser.

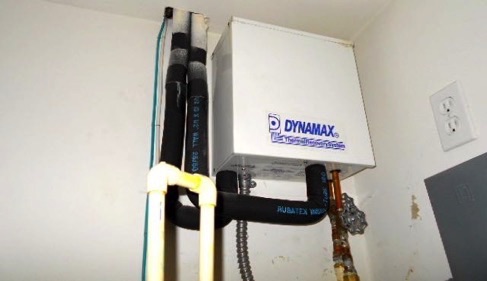

   Even without any markings on the box, you can identify it as a heat recovery system by observing the extra insulated pipes connected from it to the condenser and water heater. Here’s an example below.

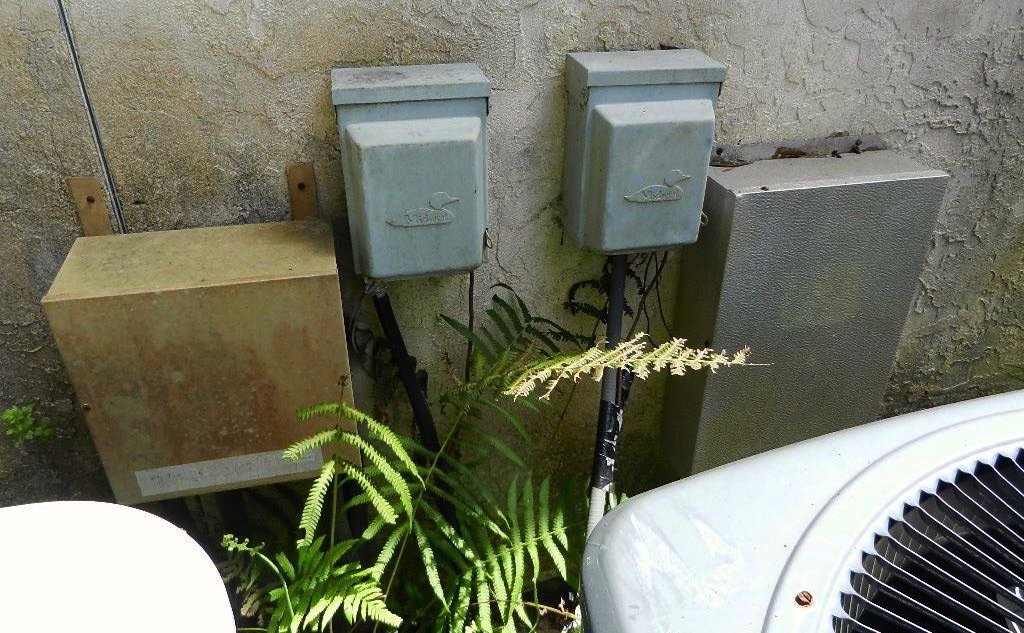

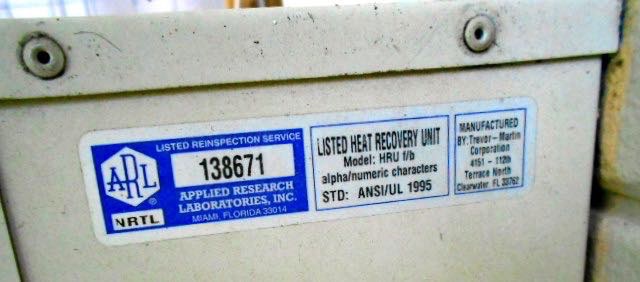

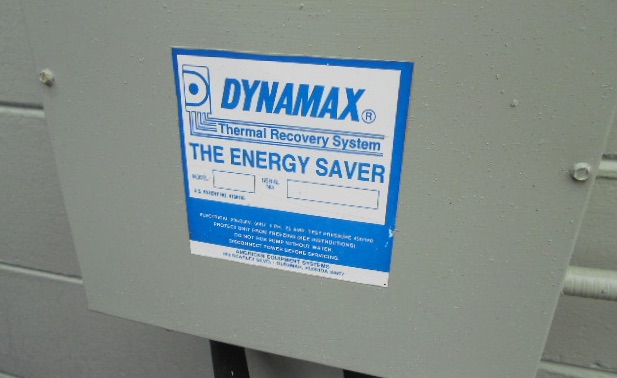

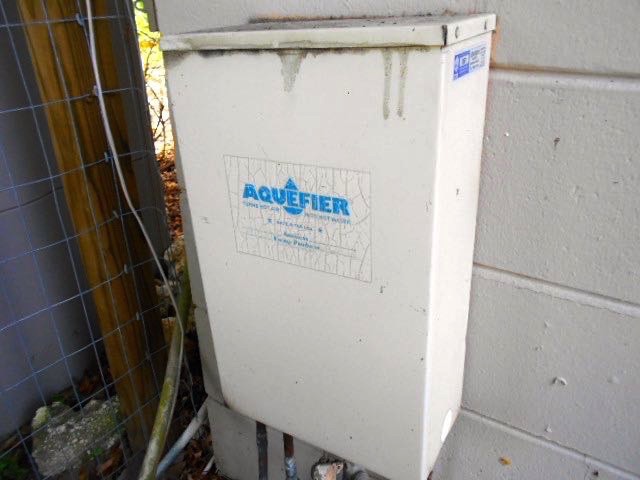

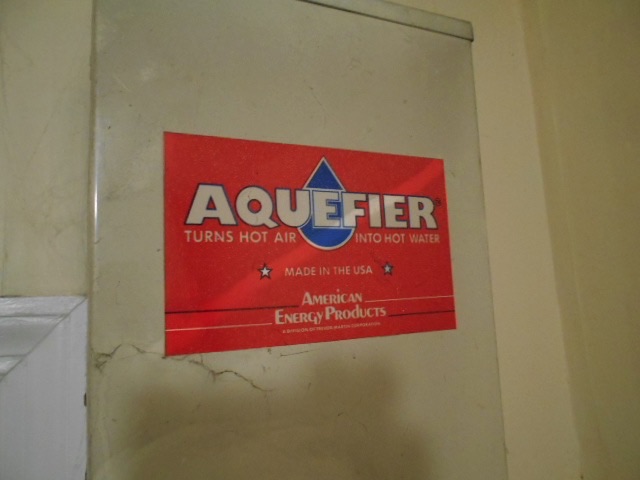

And here’s several examples of the different brands of units, with the last one being of a pair of older units behind their respective condensers, with markings that have been worn off by the weather.

   To learn more about heat recovery systems, we suggest you visit the Q&A page of Trevor-Martin Corporation at http://trevormartin.com/hru.htm; or, for a more detailed explanation of thermal recovery systems, download a technical paper by Ronald Jarnigan, of University of Florida Cooperative Extension Service, by clicking the link below.

UFHeatRecovery.pdf

    Also, see our bog post What does a "heat pipe" do in an air conditioning air handler?

• • • • • • • • • • • • • • • • • • • • • • • • • • • •
