Why did my air conditioner quit after changing filter?

Tuesday, September 11, 2018

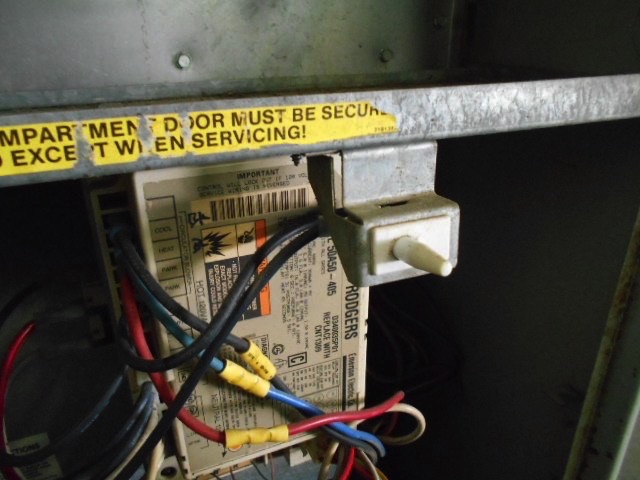

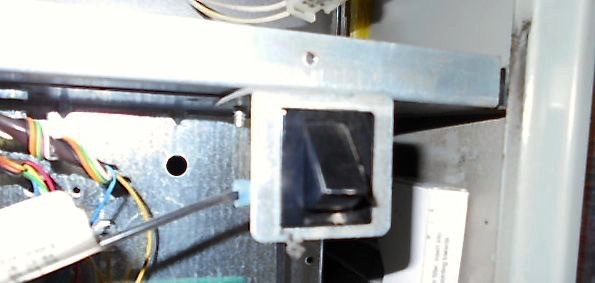

If your central HVAC system utilizes a combination of electricity for cooling and natural gas for heating, and also has a filter below the bottom front panel of the indoor unit (furnace/air handler), then the problem is likely a small safety switch. It may be in the shape of a pin located at the top of the panel opening that pops out when the bottom panel is removed, like in the photo above; or, it could be a small lever that swings out when the panel opens, as in the photo below.


    Either way, when the switch is activated it shuts off the system—to prevent the possibility that combustion gasses being created in the furnace directly above the panel opening could be sucked down in the air circulating back into the home below.

   The somewhat battered yellow sticker above the safety switch in the photo states that “COMPARTMENT DOOR MUST BE SECURED EXCEPT WHEN SERVICING!” Your problem could be that the bottom panel has not been correctly replaced so that it compresses the safety switch, which allows the system to restart. Try resetting that bottom panel, making sure that it is securely pressing against the front metal surfaces of the furnace/air handler cabinet. Also, remember that there is a time delay built into the air conditioning system that keeps the system from restarting for a few minutes.

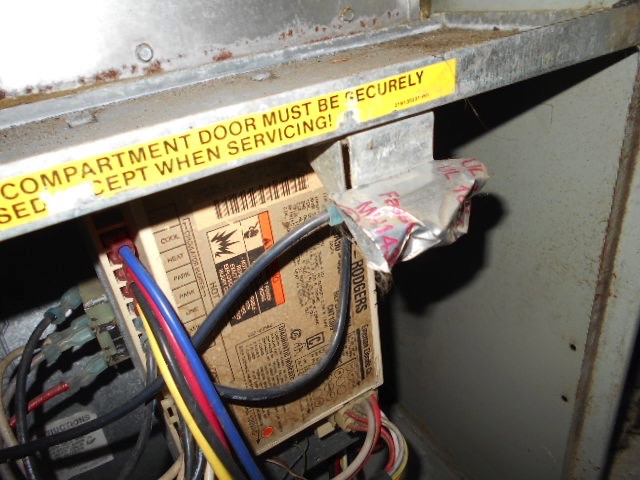

  If you find that the front panel is securely in place and the air conditioner still won’t start back up, then you have a fault safety switch or some other problem, and need a service call from an air conditioning technician. Occasionally, we come across a system that has had a cantankerous safety switch “fixed” by disabling it with tape to keep it in the closed position, or it has been removed altogether. Both of these are safety defects that will put you at risk for carbon monoxide poisoning. So...don’t do it!

Also, see our blog posts Frequently Asked Questions (FAQ) about Air Conditioning Troubleshooting and Why is my air conditioner not cooling enough?


• • • • • • • • • • • • • • • • • • • • • • • • • • • •
