Can a receptacle outlet be mounted face-up (horizontally) on a countertop?
Friday, February 15, 2019

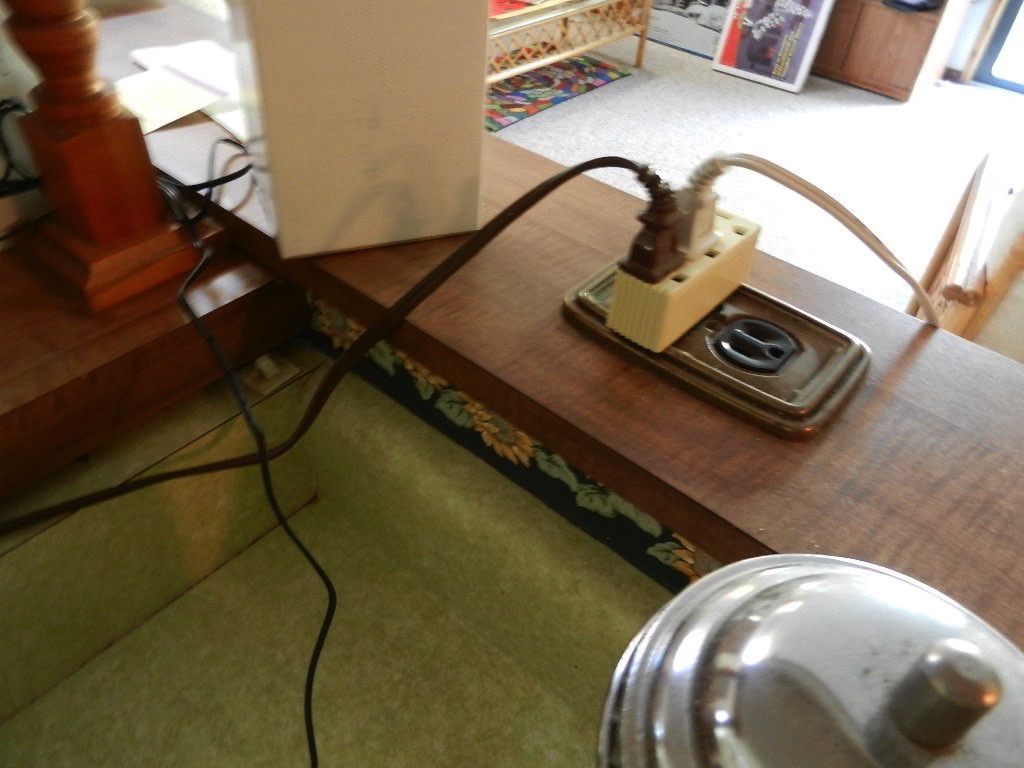

No, you can’t mount a regular receptacle outlet flat on a countertop like the one shown above, per National Electrical Code [NEC 406.5 (G)], which states "Receptacle Orientation - Receptacles shall not be installed in a face-up position in or on countertop surfaces or work surfaces unless listed for countertop of work surface applications.” But please note that this only applies to “countertop surfaces or work surfaces” and, for example, a face-up receptacle on a fireplace mantel does not need a special ratin

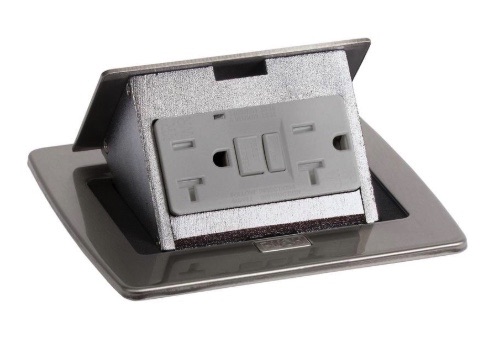

A listed receptacle is a pop-up type, like the one shown below, and they are not cheap—costing from $150 to over $300, depending on the sophistication of the pop-up mechanism.
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
