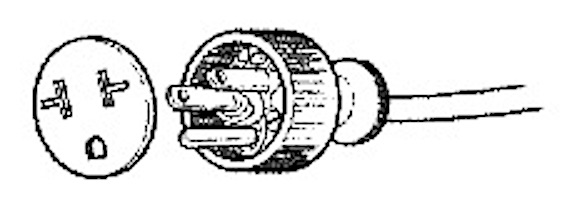

Open front plugs have an insulating cover over the face of the plug that is easily removable.  The above picture is an old-style plug and they have not been legal for sale in the US for many years. The panel covering the wiring was sometimes even just heavy cardboard, and a damaged or torn off cover exposed live wiring.

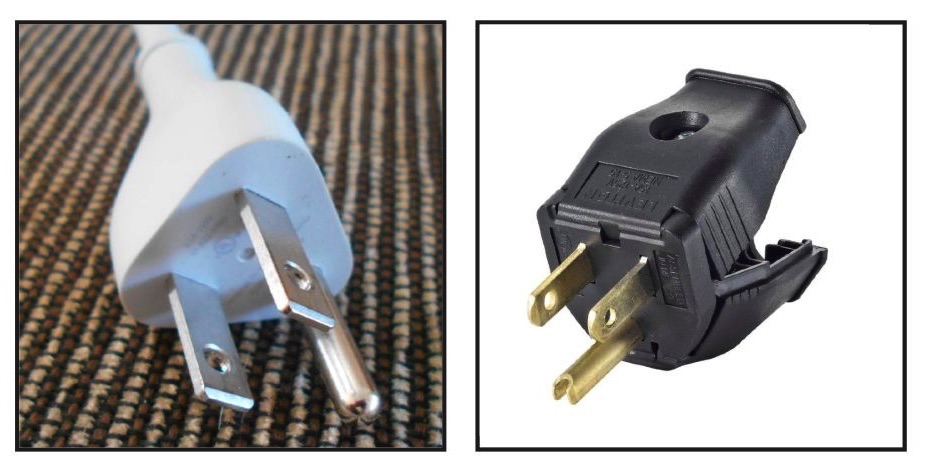

    This question about open front plugs is often asked because OSHA requires that power tool cords must be the dead front type. Dead front is defined by NEC as “without live parts exposed to a person on the operating side of the equipment,” so the plug can either be factory sealed, openable only from the back, or secured with screws at the face. Dead front plugs are less likely to cause a shock or short circuit. And, by the way, the NEC refers to them as “attachment plugs."

• • • • • • • • • • • • • • • • • • • • • • • • • • • • •
