Can a receptacle outlet be installed horizontally face-up by code?
Friday, November 20, 2020
Yes, you can mount an ordinary wall-type receptacle outlet horizontally with the face up, with two exceptions:

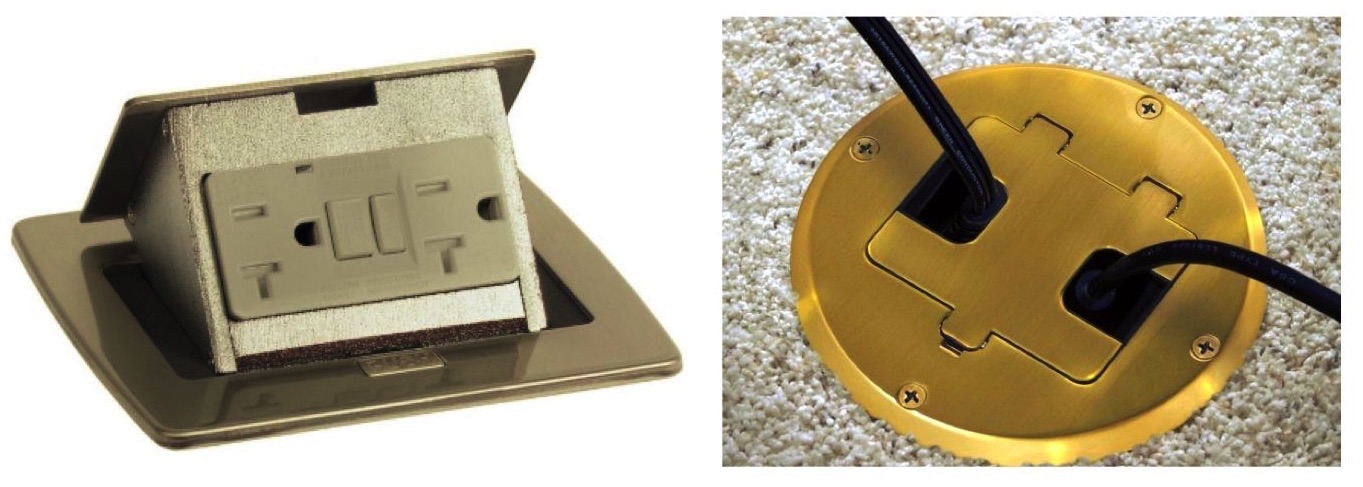

1) Receptacles on a countertop or work surface must be specially rated for that use, per NEC 405.6(B), and are typically pop-up type. See our article Can a receptacle outlet be mounted face-up (horizontally) on a countertop? for more details.
2) Floor receptacles must be specially rated, as a complete assembly of both the box and cover, per NEC 314.27(B). Also, the cover plate over receptacle slots should be closed when not in use.

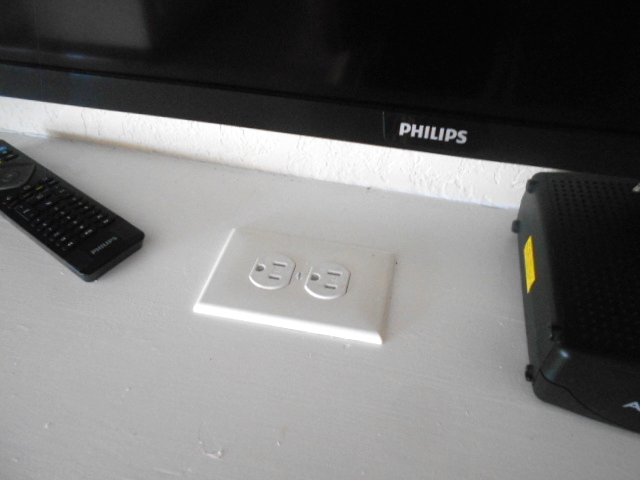

The receptacle shown at the top of this page is on a fireplace mantel, and not required to have a special rating.
• • • • • • • • • • • • • • • • • • • • • • • • • • •
