Can I replace an old two-slot (not grounded) recptacle outlet with another two-slot receptacle by code?
Friday, February 28, 2020

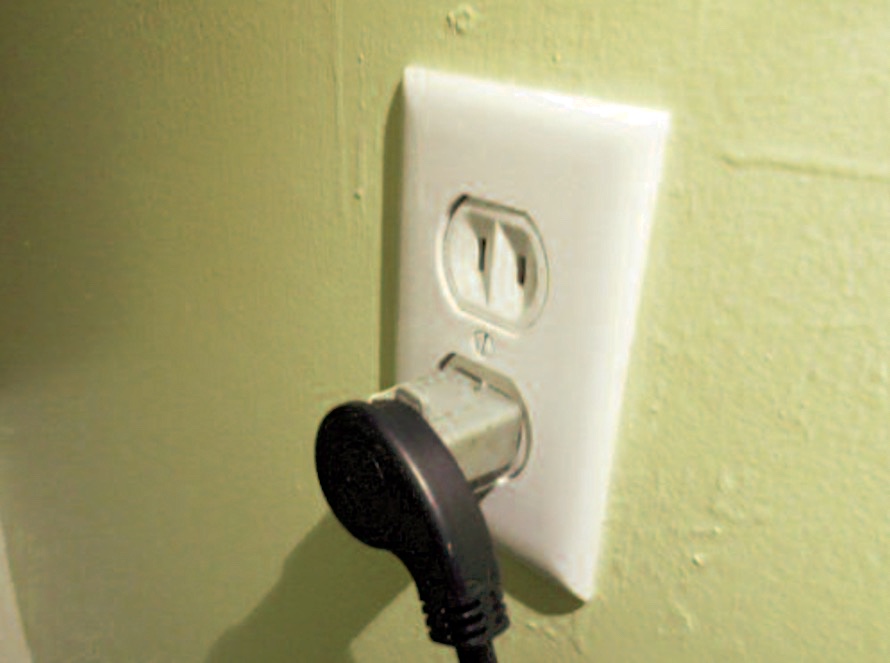

You can replace a two-slot (ungrounded) receptacle with another two-slot receptacle if you want. It is allowed by the National Electrical Code [406.4(D)(2)]. There are actually three options you have for receptacle replacement when the circuit does not have a grounding conductor:
1) A non-grounding receptacle can be replaced with another non-grounding type (two-slot) receptacle.
2) A non-grounding receptacle can be replaced with a GFCI receptacle (three-slot), provided that a “NO EQUIPMENT GROUND” sticker is attached to the face plate.
3) A non-grounding receptacle can be replaced with a grounding type receptacle (three-slot), where the circuit is protected by a GFCI at another location. There must be a “NO EQUIPMENT GROUND” and a “GFCI PROTECTED” sticker attached to the face plate.
Also, see our blog posts Is an ungrounded electric receptacle outlet dangerous? and How do you test for GFCI protection at an ungrounded receptacle outlet? and Is there an adapter that can be placed on a two-slot receptacle to make it safe? and What is a false ground, bootleg ground, or cheated ground receptacle?
• • • • • • • • • • • • • • • • • • • • • • • • • • •
