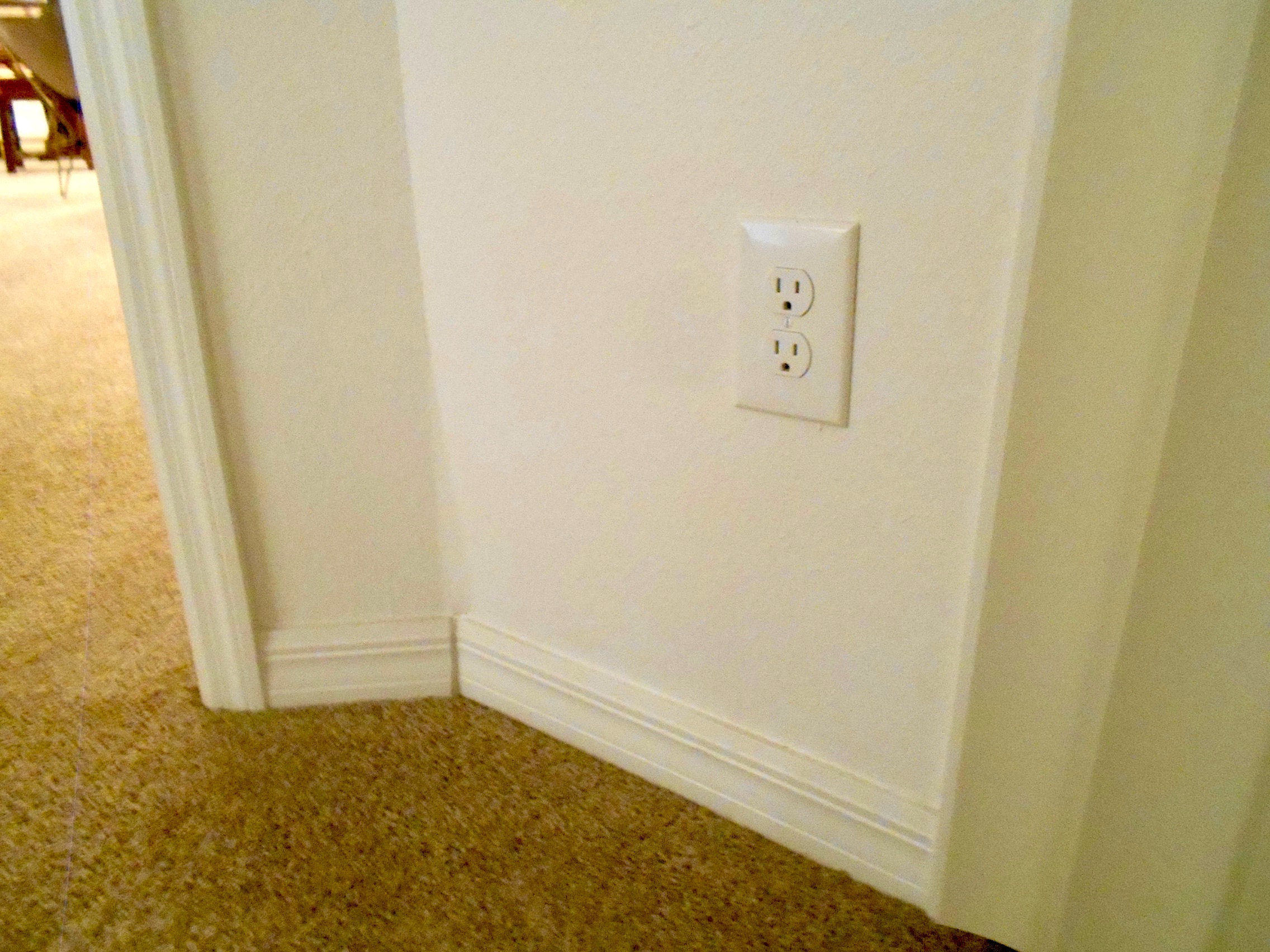

Any wall space 2-feet long or more must have a receptacle, and the length measurement continues along any change in direction of a continuous wall. The maximum spacing between receptacles, according to the National Electric Code [NEC 210.52(a)(1)], has been set at 12-feet since 1956—with no point along a wall being more than 6-feet from a receptacle, and  The logic behind that number is that an appliance with a standard length cord could then be plugged-in anywhere along the wall without requiring an extension cord.

    This is the general rule, but there is a closer spacing for receptacle outlets at the kitchen counter. Also, the location and number of receptacles in a bathroom, garage, hallway, or exterior of a house are specified differently. For full details on all these areas, see our blog post How far apart should the electrical receptacles be placed?

• • • • • • • • • • • • • • • • • • • • • • • • • •
