You can determine the “nominal” size of your HVAC system by examining the model number on the data plate at the side of the condenser (outdoor unit). Just like the nominal size of lumber or an air conditioning filter, the exact cooling capacity may be a little more or less than the nominal rating, but it’s close.

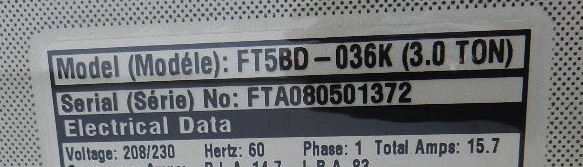

    For Westinghouse, you should look at the last two numbers of the model number, which represents the nominal BTU of the system in thousands. A ton of air conditioning equals 12,000 BTU so, for the model number FT5BD-036K shown, 36 divided by 12 equals 3 tons. Another example is HWC8N4809P24, which is 2 tons. Another example is FS4BI-024K, which is 2 tons.

   Here’s a rundown of the range you will encounter: 18 = 1.5 tons, 24 = 2 tons, 30 - 2.5 tons, 36 = 3 tons, 42 = 3.5 tons, 48 = 4 tons, and 60 = 5 tons.

   If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.

    To determine the age of a Westinghouse system, go to our blog post How can I tell the age of a Westinghouse heat pump or air conditioner from the serial number? For the age of another brand or manufacturer, go to our blog post How do I determine the age of my air conditioner?

• • • • • • • • • • • • • • • • • • • • • • • • • • • • •
