Why do some receptacle outlets have a T-shaped hole?

Sunday, August 23, 2020

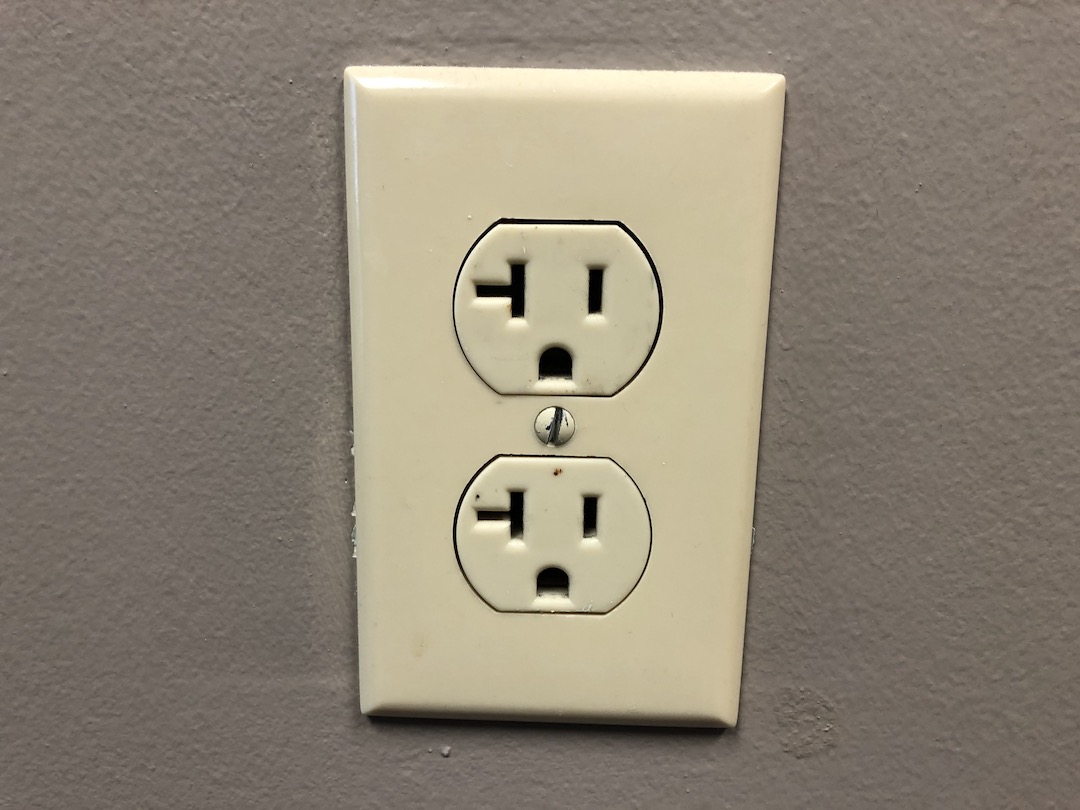

The T-shaped slot indicates that the 120-volt receptacle is rated for 20-amps. Regular wall receptacles with a pair of vertical slots are rated for only 15-amps, but the T-shape enables it to accept either a 15- or 20-amp plug.

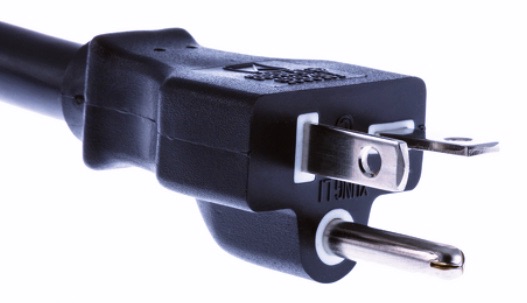

    This receptacle configuration is called a NEMA 5-20R, a standard created by the National Electrical Manufacturers Association, and it accepts a NEMA 5-20P plug like the one shown below.

• • • • • • • • • • • • • • • • • • • • • • • • • • •
