Does a kitchen garbage disposal require GFCI protection?
Monday, December 6, 2021

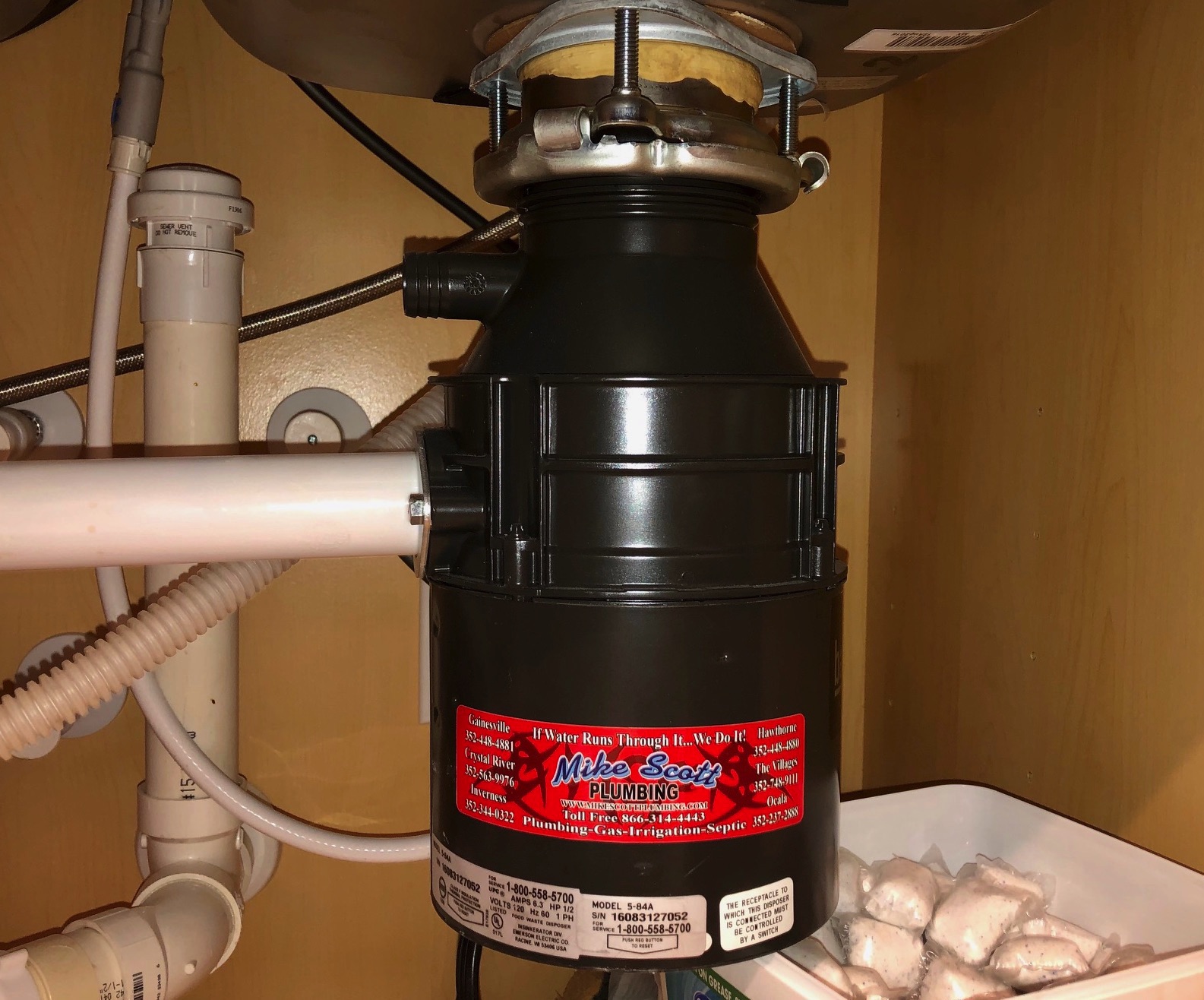

A kitchen garbage disposal receptacle outlet is required to be GFCI-protected by the 2020 National Electrical Code. It is not mentioned specifically by name, but comes into play under the requirement for GFCI-protection for receptacles "within 1.8 m (6 ft) from the top inside edge of the bowl of a sink” [NEC 210.8(A)(7)]. The code further states that “for the purposes of this section, when determining the distance from receptacles the distance shall be measured as the shortest path the supply cord of an appliance conneccted to the receptacle would follow without piercing a floor, wall, ceiling or fixed barrier, or the shortest path without passing through a window.” (NEC 210.8)
So, measuring from the receptacle through a cabinet door (which is not a fixed barrier) to the counter edge of the sink, the distance would be less than 6 feet and require GFCI-protection. By the way, disposal receptacles are also required to be AFCI-protected.
Earlier editions of the code included “door” in the list of obstacles that the cord could not pass through in the 6-foot measurement. But, did the code mean “doorway" or "cabinet door," or both? Some jurisdictions interpreted it to include a cabinet door and exempted disposals from the GFCI requirement.
• • • • • • • • • • • • • • • • • • • • •
