How do I determine the age of a GE electrical panel?
Sunday, March 28, 2021

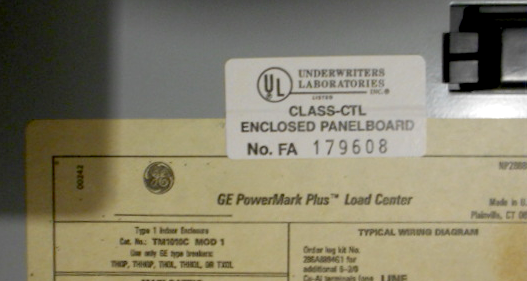

GE load centers have an eight-digit serial number of two letters followed by six numbers, and the second letter indicates the year of manufacture, based on a repeating 12-year cycle. The serial number is usually located on a small sticker on, or near, the wiring diagram on the inside of the panel door.
A = 2013, 2001, 1989, 1977, 1944
B = 1945
C = 1946
D = 2014, 2002, 1990, 1978, 1947
E = 1969, 1948
F = 2015, 2003, 1991, 1979, 1949
G = 2016, 2004, 1992, 1980, 1950
H = 2017, 2005, 1993, 1981, 1951
J = 1952
K = 1953
L = 2018, 2006, 1994, 1982, 1970, 1954
M = 2019, 2007, 1995, 1983, 1971, 1955
N = 1972, 1956
P = 1973, 1957
R = 2020, 2008, 1996, 1984, 1972, 1958
S = 2021, 2009, 1997, 1984, 1973, 1959
T = 2010, 1998, 1986, 1974, 1960
V = 2011, 1999, 1987, 1975
Z = 2012, 2000, 1988, 1976
Between 19961 and 1968 they used three letters at the beginning of the serial number, and the second and third letters indicated the year.
VU = 1961, WV = 1962, XW = 1963, YX = 1964, AY = 1965, BZ = 1966, CA = 1967, DB = 1968

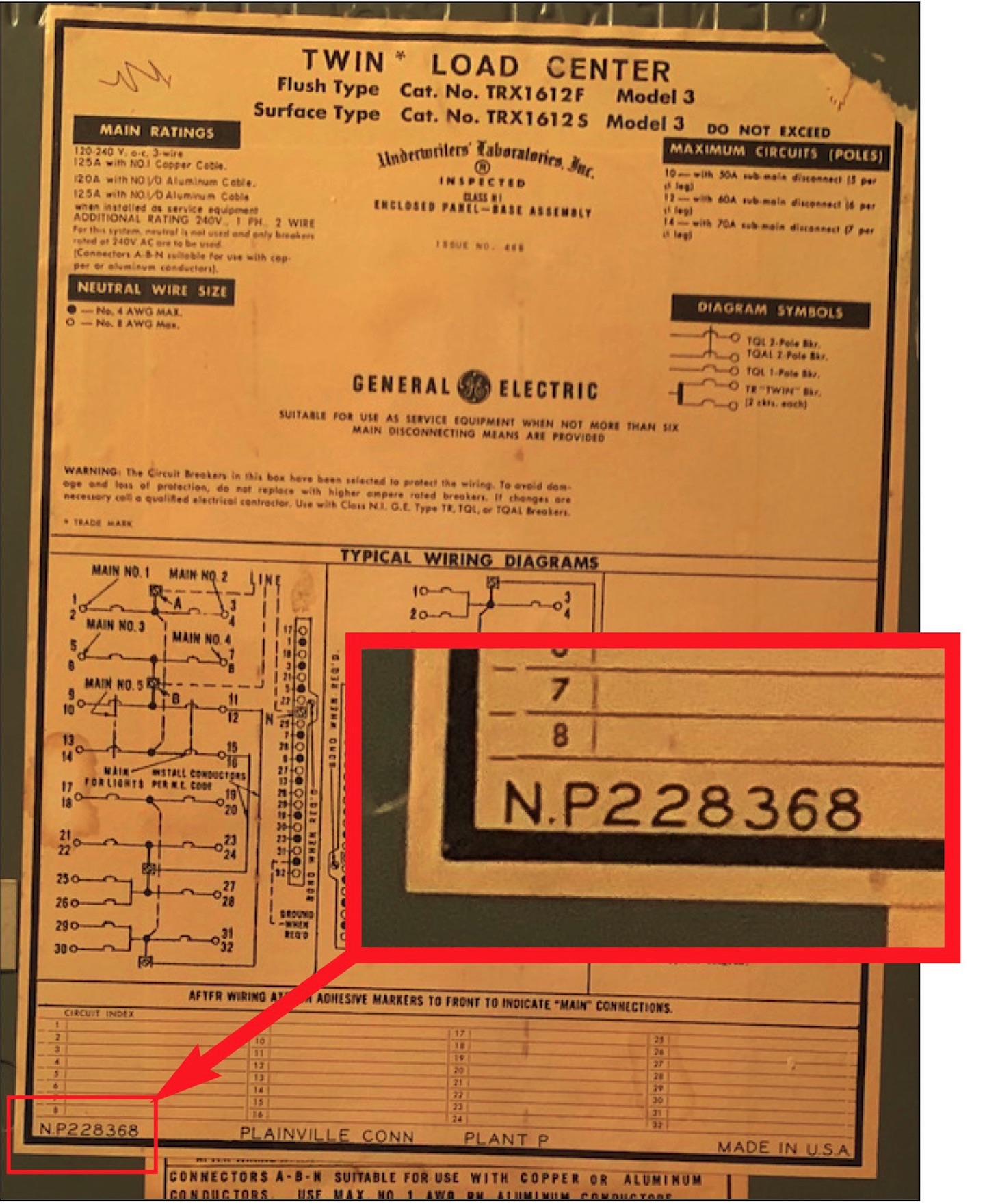

Yes, this makes it complicated to figure out which year is the correct one. Knowing the year of the original construction of the house or any major remodeling may help you get closer to the right one. Here’s an example below of an older panel that has the serial number at the bottom of the diagram.
Still stumped? Try contacting GE directly for an answer. Go to https://www.geappliances.com/ge/service-and-support/contact.htm for online chat with a technician, weekdays only, from 9am to 7pm.
Also see our blog post How do I find out the manufacturer of an electrical panel? And for the age of another manufacturer’s panel, go to How do I determine the age of an electrical panel?
To find the age of other home components, go to How can I find out the age of a roof? and How do I determine the age of my air conditioner? and How do I determine the age of my water heater? For life expectancies, visit What is the average life expectancy of the components of a house?
