Does a whole-house surge protector need a dedicated circuit breaker?

Thursday, April 14, 2022

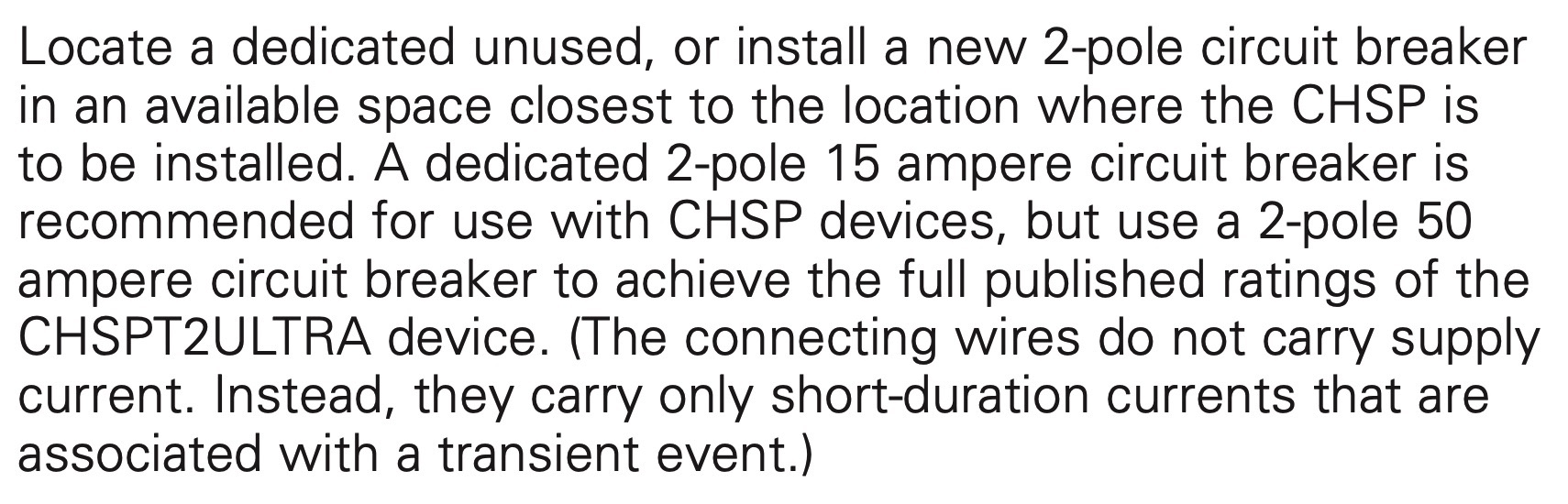

Manufacturer instructions for Type 2 surge protectors (installed load side, after main breaker) specify connection to a dedicated unused breaker. Here’s an example from an Eaton surge protector installation manual:

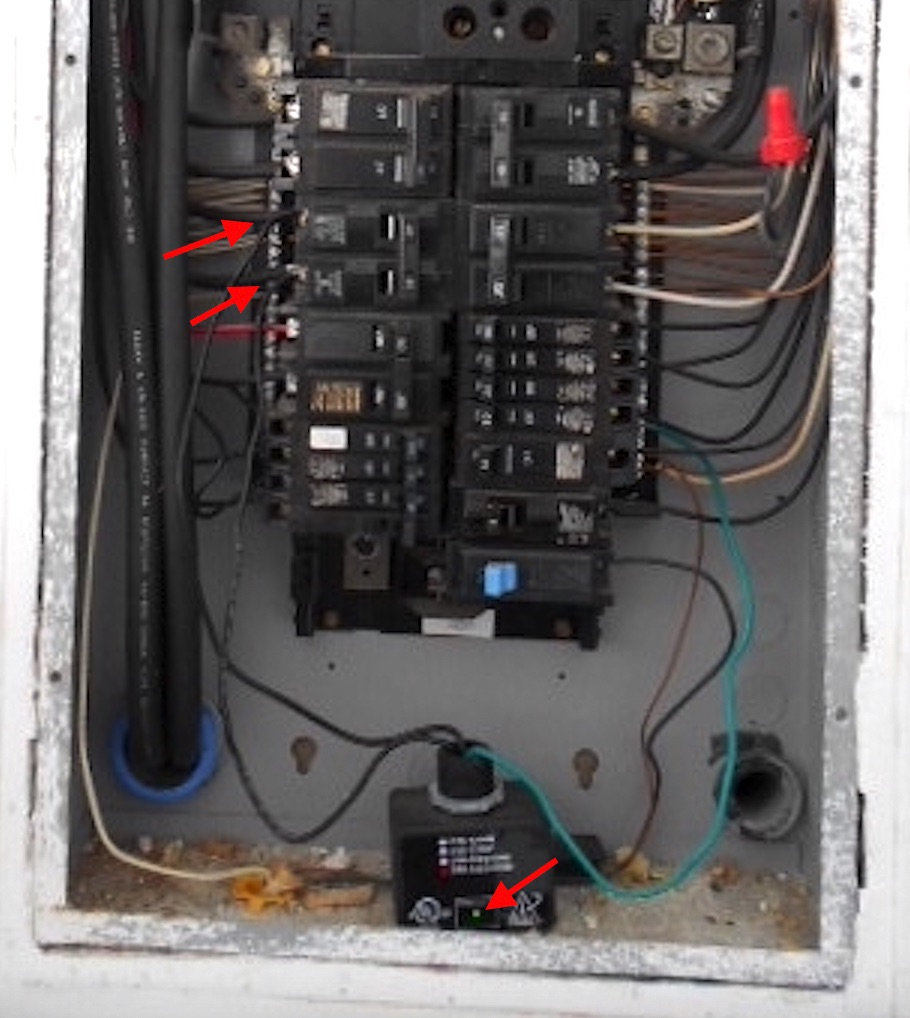

    So a double-tap to a 240-volt breaker that is already serving another circuit is not acceptable. The example shown below also has an additional problem: it is both double-tapped to a breaker for another circuit (top arrows) and the device is installed inside the panel box, so that the small green light that indicates whether the device is still functional is not visible without removing the dead front (bottom arrow).

• • • • • • • • • • • • • • • • • • • • •
