How do I determine the size in tons of a Fraser-Johnston air conditioner or heat pump from the model number?

Monday, April 4, 2022

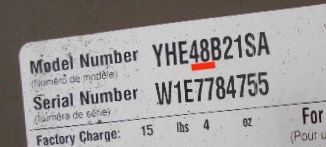

You can determine the size in tons of your Fraser-Johnston HVAC system by examining the model number on the data sticker at the side of the a/c condenser (outdoor unit). Look for first two numbers in the model number. They are divisible by 6 or 12, which represent the nominal BTU of the system in thousands. A ton of air conditioning equals 12,000 BTU, and 48 divided by 12 equals 4, so the data plate below indicates the system is 4 tons.

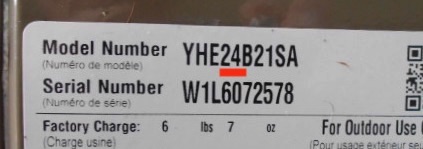

        Here’s a rundown of the range you will encounter: 18 = 1.5 tons, 24 = 2 tons, 30 - 2.5 tons, 36 = 3 tons, 42 = 3.5 tons, 48 = 4 tons, and 60 = 5 tons. And this is another one that is 2 tons.

    If you are unsure whether you have found the right two numbers, you can double-check it by looking for the “RLA” rating on the data plate. RLA is an acronym for Rated Load Amperage, and is what the maximum amperage should be when the condenser up and running. If you divide the RLA by 6 for older units and 5 or 6 for newer units, you should get a number that approximates (not exactly) the tonnage of the system. Make sure you use RLA and not LRA, Locked Rotor Amperage, which is the surge of amps necessary to overcome inertia and start the system. It averages around five times the RLA.

    To determine the date of manufacture of a York system, see our blog post  How can I tell the age of a Fraser-Johnston air conditioner or heat pump from the serial number?
