What is a dead valley at a roof?
Wednesday, July 20, 2022

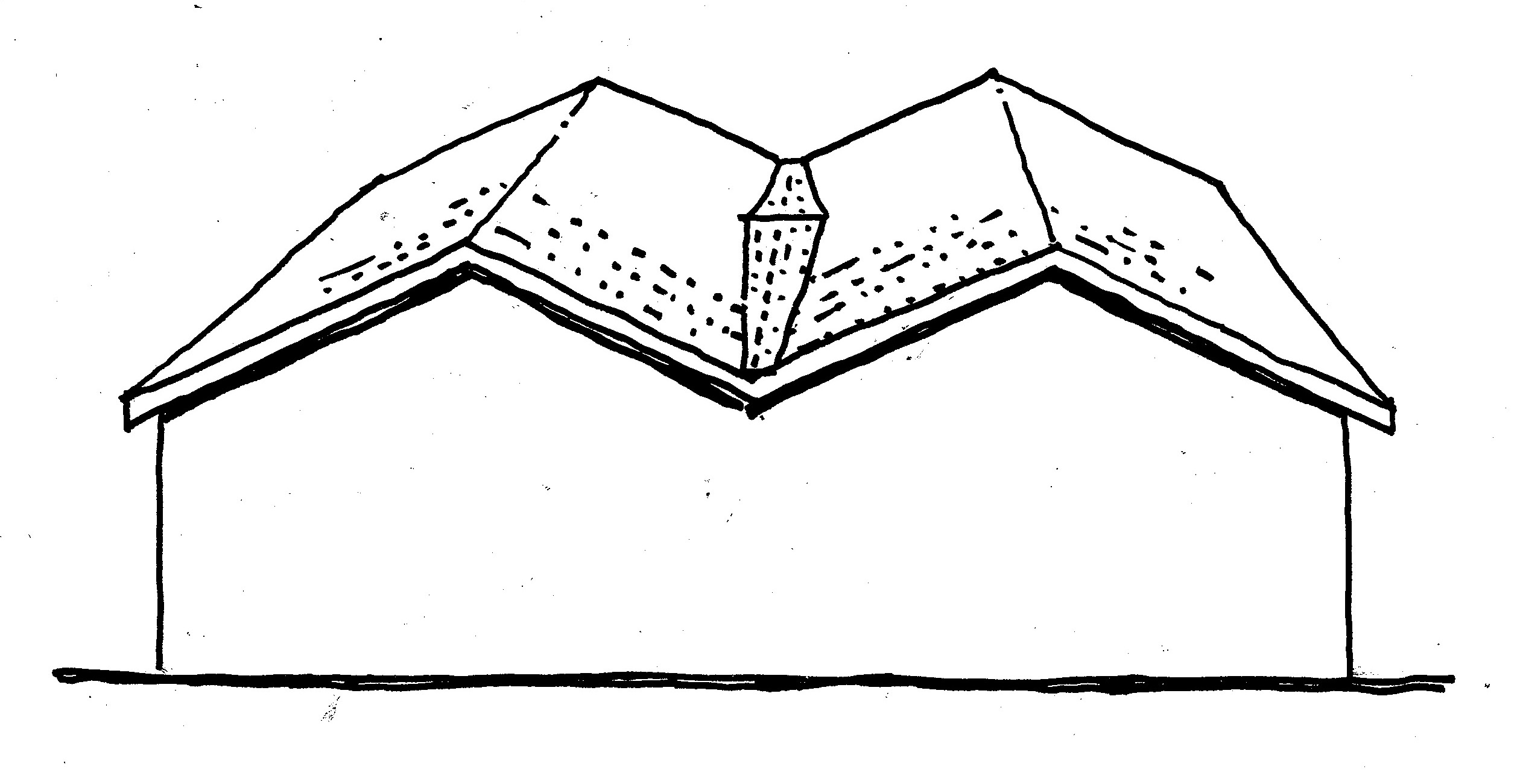

A dead valley is one that has little or no slope, which can occur between two parallel roof slopes. This causes water to drain slowly and may cause puddles of standing water. A dead valley is prone to leakage and it should be fixed with a saddle at the shared valley that slopes towards the end, or ends, of the valley—as in the diagram above.
Because a saddle over a dead valley is often a much lower slope than the roof, an asphalt shingle roof must have a different roof material designed for low-slope applications at the saddle. Two examples would be modified bitumen or valley metal.The absolute minimum slope allowed for application of asphalt shingles is 2/12 (2” of rise for every 12” of run).

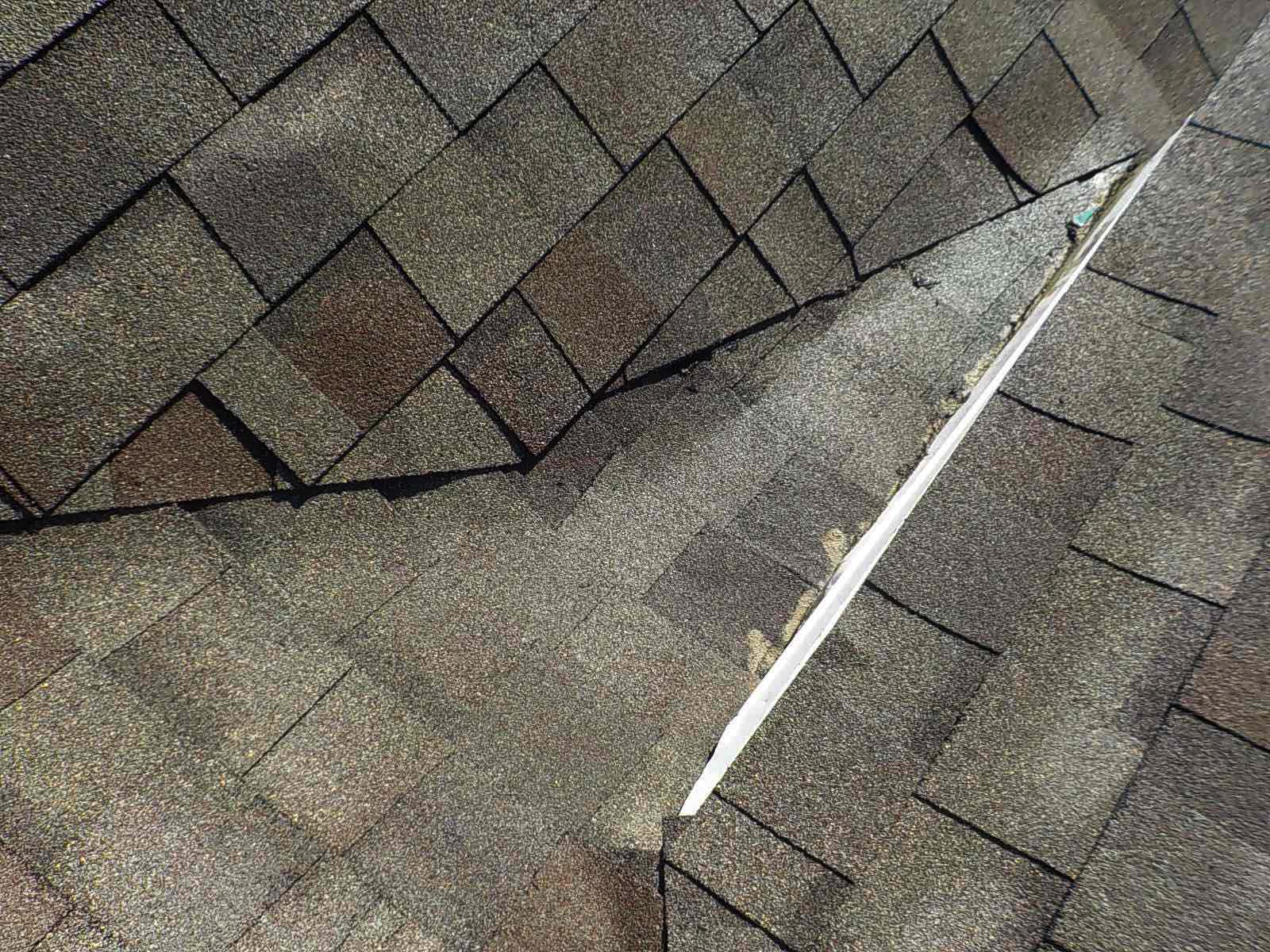

Shingles on a saddle with a shallow slope is a recurring problem we see in residences with a complicated roof line. Shown below is a saddle covered with the same shingles as the roof. The surface is visibly more deteriorated than the rest of the roof, and this will be the first area to leak as the roof ages because shingles are not designed to be watertight. They are installed with overlaps to shed water that rolls down the roof surface.
Also, see our article What are common problems of asphalt shingle roofs?
• • • • • • • • • • • • • • • • • • • • •
