Which Square D electric panels were recalled in 2022?
Tuesday, August 30, 2022
Square D issued a recall on June 16, 2022, for approximately 1.4 million electrical panels manufactured between February, 2020, and January, 2022. Panels recalled are the “QO Plug-On Neutral” type load centers, both the indoor and outdoor versions.

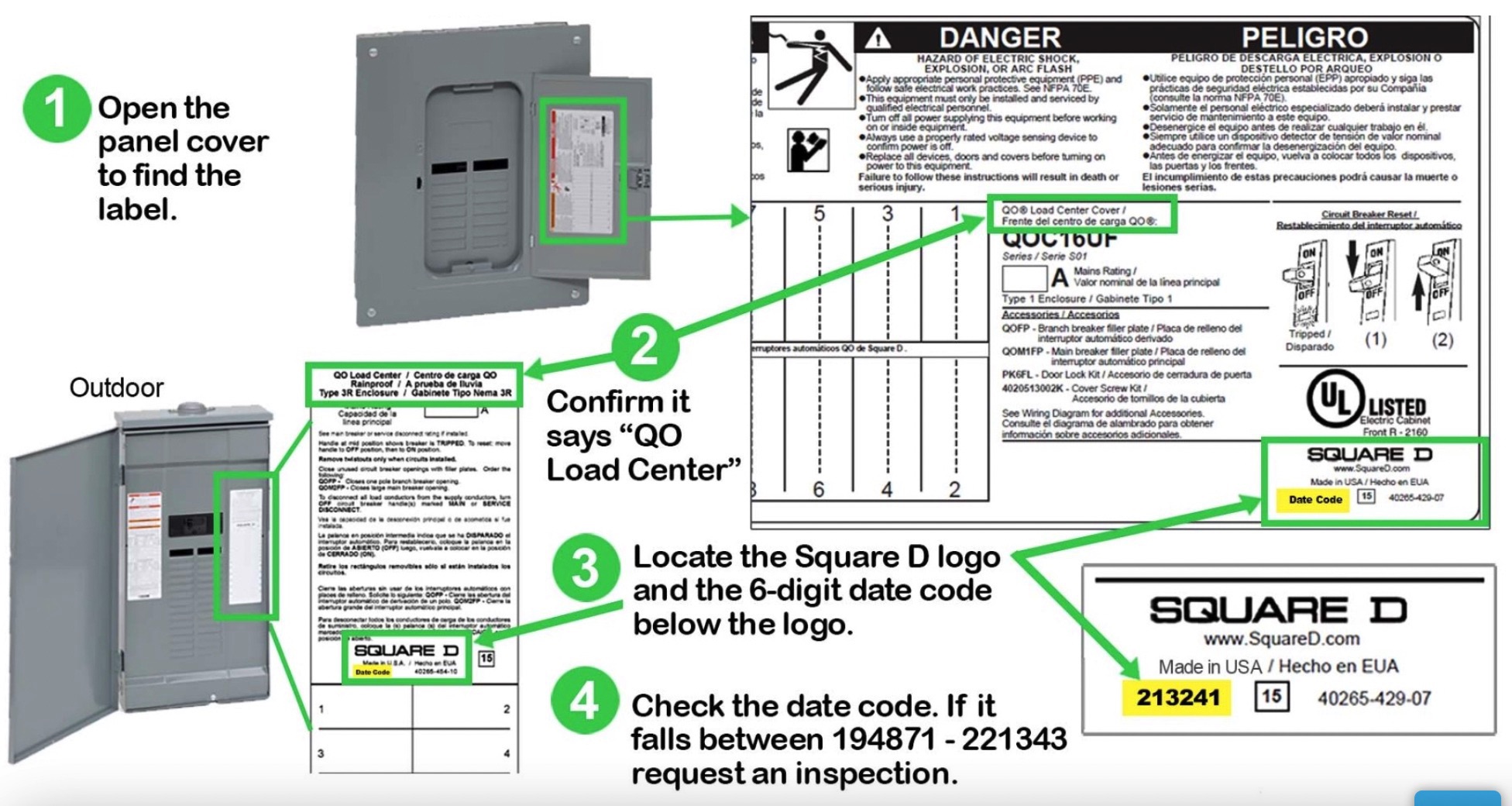

The two things to check to verify you have a recalled panel are that it is marked as a “QO Load Center” on the panel label at the inside of the panel door and that the date code in small lettering on the label is between 194871 and 221343. Use the diagram below to locate both.
These panels are gray color, like all Square D panels, so that is not a distinguishing factor. The recall is for repair or replacement. You can fill out a request online for Square D to inspect your panel (at no charge) for repair/replacement at: https://www.se.com/us/en/work/products/local/safety-notices/2022/qo-pon-loadcenters/inspection-form/
• • • • • • • • • • • • • • • • • • • • •
Field Guide for Home Inspectors, a quick reference for finding the age of 154 brands of HVAC systems, water heaters, and electrical panels, plus 210 code standards for site-built and manufactured homes, and the life expectancy rating of 195 home components. Available at amazon.com for $19.95.
• • • • • • • • • • • • • • • • • • • • • •
